Isostatic pressing graphite
Isostatic pressing graphite

Isostatic pressing graphite

Duratight brand isostatic pressing graphite, high-quality petroleum coke and pitch coke are used as the main raw materials, and the graphite products are made by milling (average particle diameter is less than 25 μ m), kneading, flaking, isostatic pressing, roasting, impregnation, graphitization and other processes.

characteristic:

1. The particle size is uniform;

2. Good quality stability;

3. Excellent self lubrication;

4. Good chemical corrosion resistance;

5. High thermal conductivity and thermal stability;

6. Sufficient mechanical strength and impact resistance;

7. The structure is uniform, compact and has strong antioxidant capacity;

8. Isotropy is good, and the characteristics are independent of size, shape and sampling direction;

9. Easy to machine, can be processed into a variety of geometric products.

Inquire now

Product Details




Main technical specifications:

Article number

density

(≥g/cm3)

Flexural strength
(≥MPA)

compressive strength
(≥MPA)

Shore hardness

Coefficient of thermal expansion
 (x10-6/℃)

ash content
(≤PPM)

Particle size
(μM)

DT-IG-01

1.8

11~13

40

86

4.1

0.05

20

DT-IG-02

1.82

10~13

47

88

4.5

0.05

20

DT-IG-03

1.85

10~12

45

90

4.3

0.05

15

DT-IG-SIC1

1.83

13

60

125

4.7

0.05

10

DT-IG-R5

1.68

13~14

38

86

5

0.05

45

DT-IG-05

1.85

8~10

46

85

4.75

0.05

45

DT-EDM-7

1.82

11~13

51

115

5.6

0.05

45

DT-EDM-8

1.91

11~13

60

135

5.85

0.05

45


Application fields: Semiconductor, photovoltaic solar energy, EDM and mold processing, nuclear energy, metallurgy, aerospace and many other fields

Product specifications: according to customer size, the use of environmental requirements for customized production

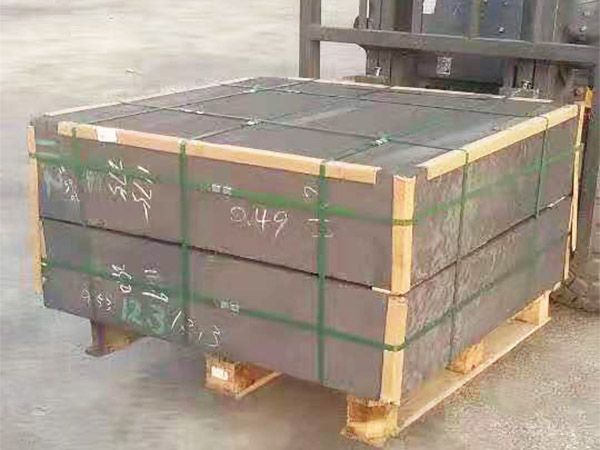

Packing method: wooden box or wooden cage + pallet packing

Delivery time: 5-10 working days, depending on the order quantity
